 NOTES:
  1. MEET UL 0.25 INCH MAX.
    SPACING PLUS GAUGE TEST.
  2. STEEL WIRE RINGS 1.8 mm(0.071 inch)DIA.
  3. RIBS 1.8 mm(0.071 inch)DIA. BRIGHT BASIC.
  4. MIN.220LB,SEPARATION FORCE TO WITHSTAND WELD JOINTS.
  5. TAIR L.S MICRO DEVELOPMENT,INC
    FAX:886-3-397-0702
    TEL: 886-3-397-0700

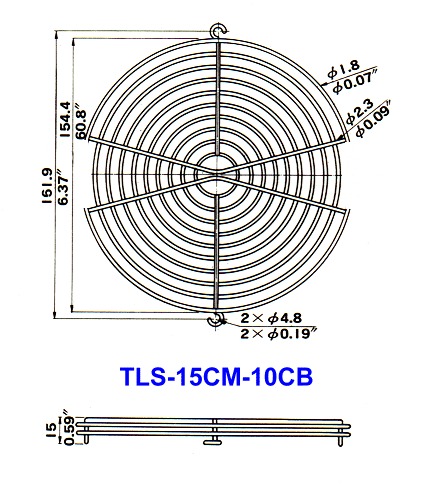

MODEL NO.

   TLS-15CM-10CB

PART NO.

 FG-15CM-10CB

DESCRIPTION

 FAN GUARD(WIRE) FOR 150 m/m FAN USE

MATERIAL

 WIRE JIS 3552 5WM-B

FINISH(COATING)

 BRIGHT CHROME PLATED
SCALE: NOT 1:1 FROM INTERNET UNLESS OTHERWISE SPECIFIED ,THE FOLLOW APPLIES:
CENERAL WALL THICKNESS = MM,
DRAFTS =DEGREE,
TOLERANCE = +/-0.5 MM,
DRAFTS = +/-0.5 DEGEGREE
IMPORTANT :DO NOT SCALE DRAWING BACK IN CASE OF QUERY.
QUANTITY(UNIT) : 1pc
DWN BY Seaside Chung CHKD BY D. Cheng APPD BY L. Lee

TAIR L.S MICRO DEVELOPMENT,INC

 DWG-NO  B970123-R REV 98A
